Dimplex 45″ Deluxe Built-In Electric Firebox Log Media

Deluxe Built-in Electric Firebox 45″ | Dimplex

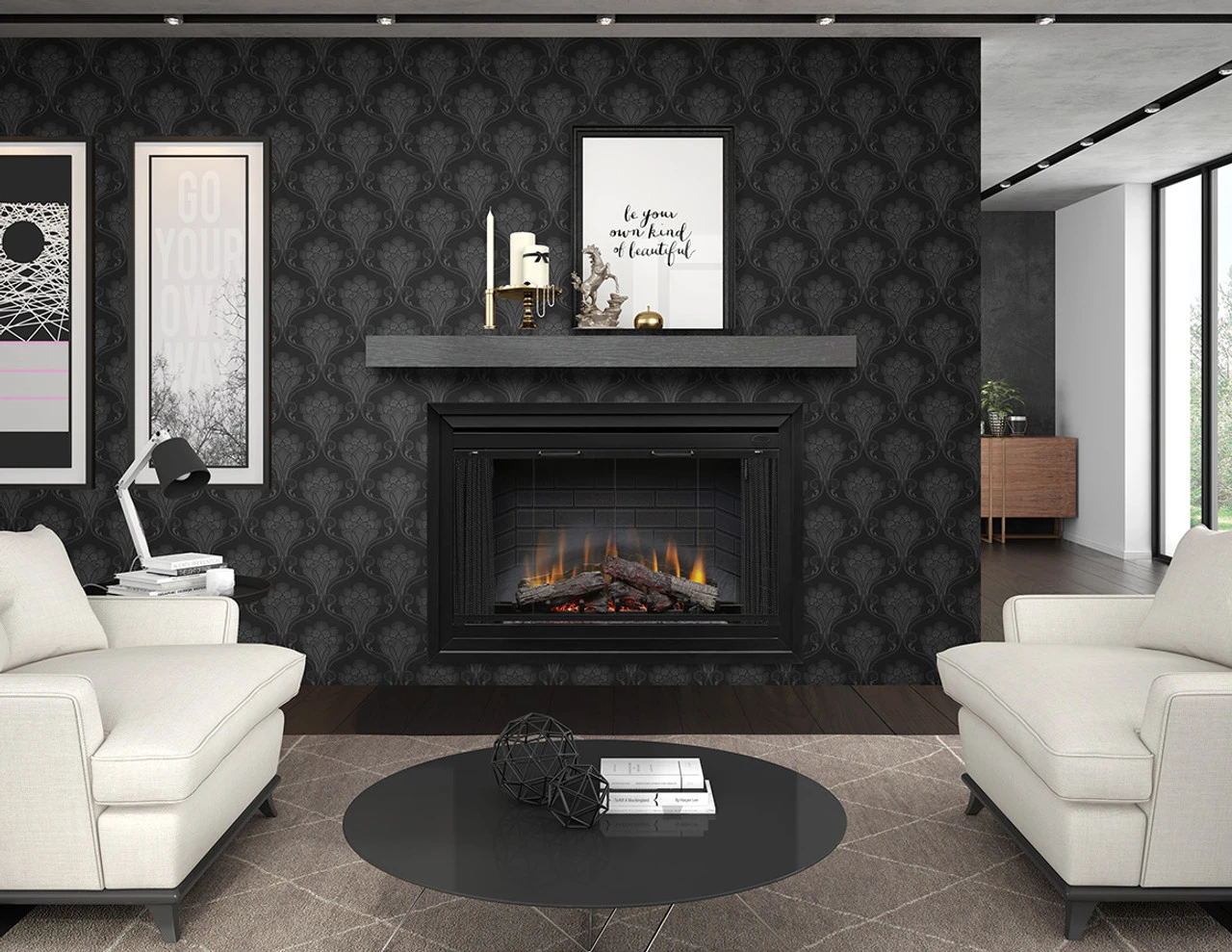

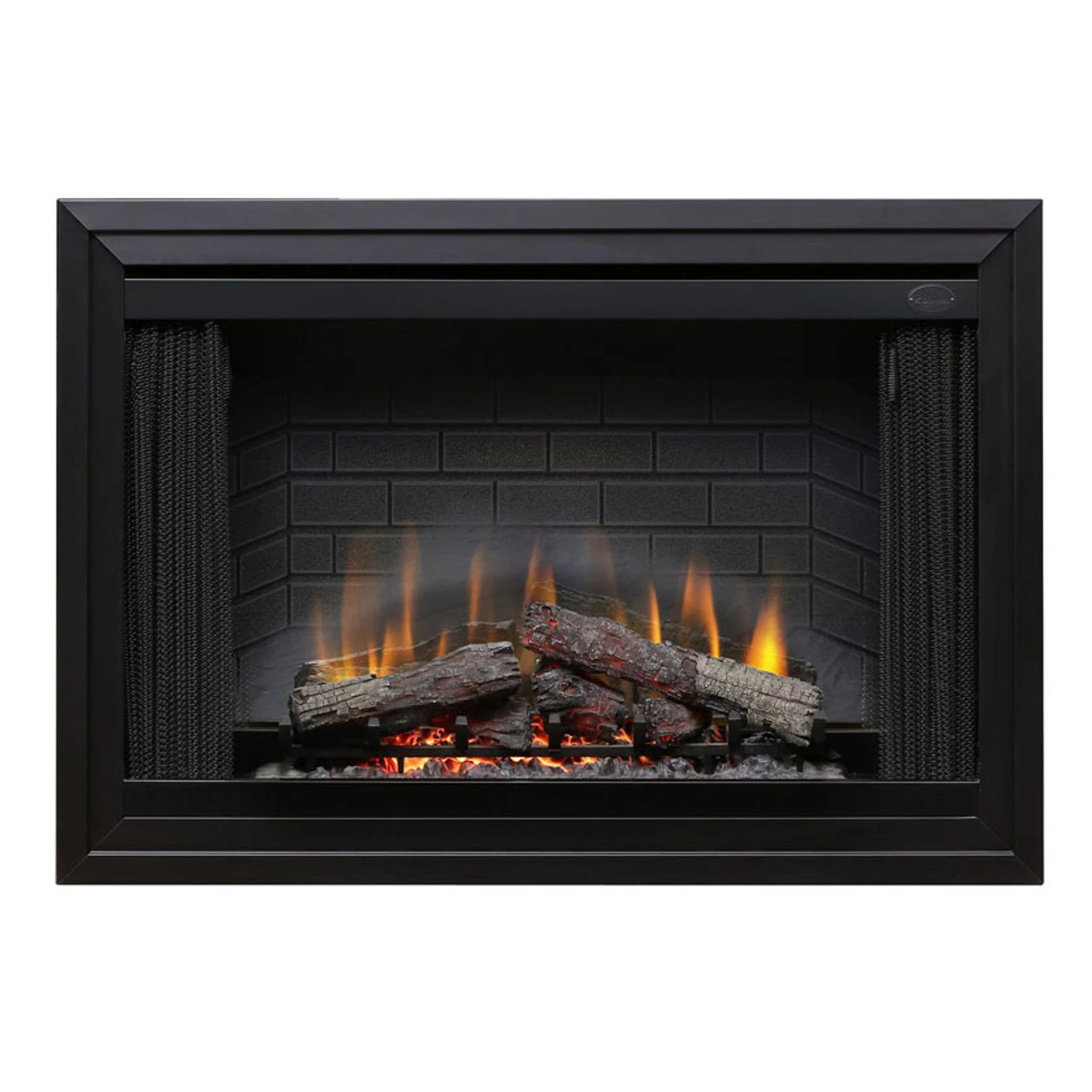

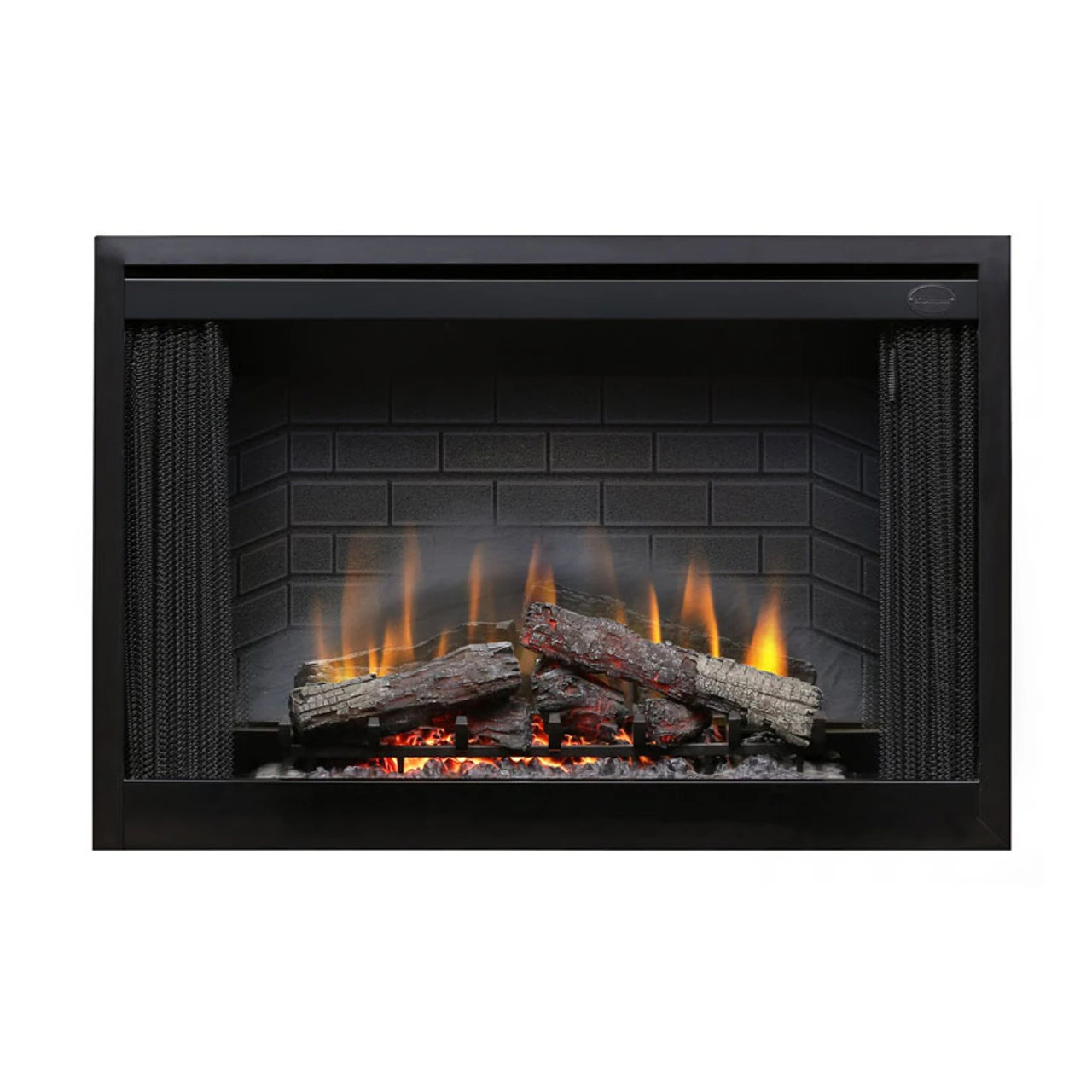

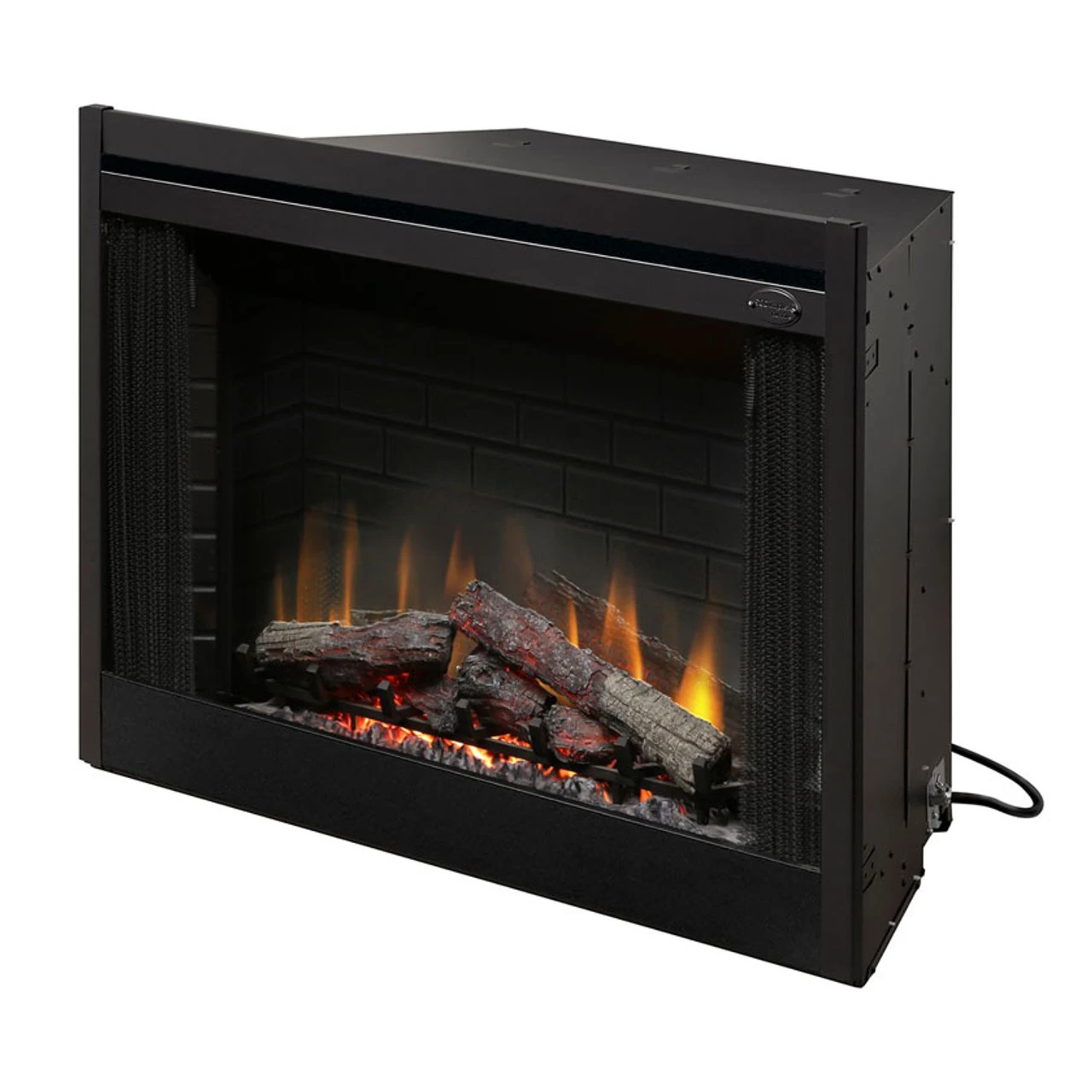

This beautiful firebox is built in to maximize floor space while bringing you the comfort of a traditional fireplace. The faux brick interior, built-in manual switches, and on/off flame and heater controls puts this firebox in a category above all others. Unit may also be wired with separate wall switches to control the flame as well as an optional wall thermostat to control the heater. Firebox is available in two options: glass doors (as shown) or plain glass front.

• Includes a powerful fan-forced heater designed to heat a room up to 400 square feet, providing supplemental heat when required.
• LED inner glow logs – Patented LED inner glow logs and pulsating ember technology allow the logs and embers to glow in concert creating an unmatched realistic fireplace experience.
• The green alternative. No harmful particulates or emissions and 100% efficient.
• Realistic log set – Dimplex fireplace logs are hand crafted and molded from real wood logs, offering an incredibly realistic log set.

Product Specifications:

• Product Finish: Black
• Style: Traditional
• Volts: 240/208/120
• Wattage: 2700/2100/1440
• Amps: 12/11.3/10.1
• BTUs: 9213/7165/4913
• Remote Control: No
• Built-in Thermostat: No
• Automatic Shut-Off: Yes
• Power Source: Electric
• Warranty: 2 Yr Limited

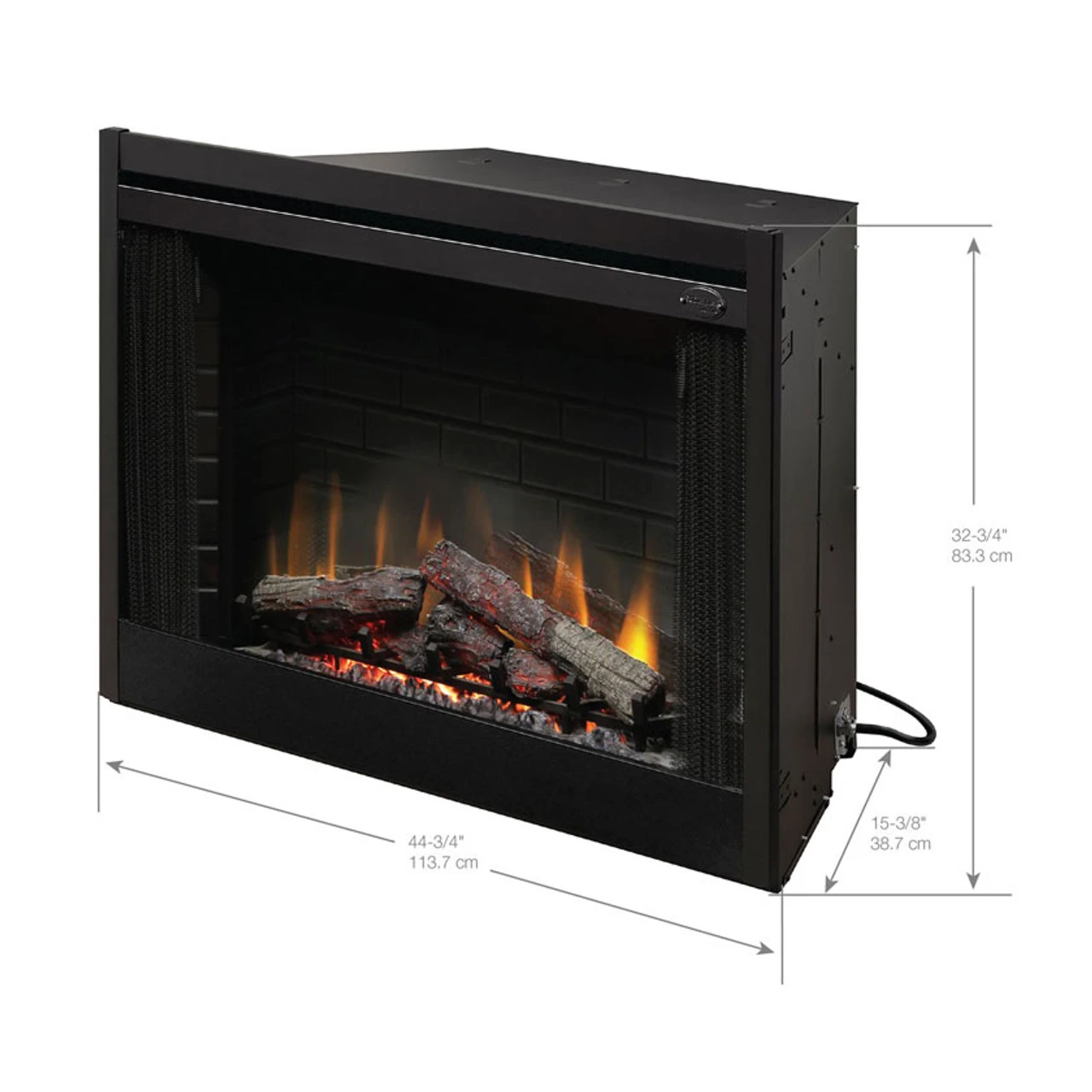

Product Dimensions:

• H 32 3⁄4 in x W 44 3⁄4 in x D 15 1⁄4 in
• H 83.06 cm x W 113.67 cm x D 38.86 cm

Owners Manuals & Spec Sheets

Owner’s Manual – Dimplex Deluxe Built-in Electric Firebox 45″ | PDF | Download

Service Manual – Dimplex Deluxe Built-in Electric Firebox 45″ | PDF | Download

Installation Manual – Dimplex Deluxe Built-in Electric Firebox 45″ | PDF | Download

Sell Sheets – Dimplex Deluxe Built-in Electric Firebox 45″ | PDF | Download
