Rasmussen 24″ Custom Pan Burner With Strap Legs And Remote Ready “Easy” Safety Pilot Control

The Custom Burner is the original gas log pan burner invented by T.R. Rasmussen in 1958. The logs sit in the welded steel rectangular burner pan, which creates an engulfing flame with a band of glowing embers. The Custom Burner can be installed on legs for a clean look (or if the gas supply is out of the floor) or placed flush on the firebox floor with accessory volcanic ash ramped to create a pit appearance. Custom Burners are available for natural gas and propane and can be used with a variety of safety controls, including wireless remote.

All vented log styles can be used with the Custom Burner. Fire Balls are stylish in modern and contemporary decors. Pine Cones are well suited for more rustic settings.

“CS” Burner – Rectangular-shaped full-pan burner. Single pipe with baffle to distribute gas. Logs, FireBalls, etc. sit in the pan – no grate is used. 4.25” high with the legs, 2” high without the legs. Use in Single, Double and Multi-sided fireplaces.

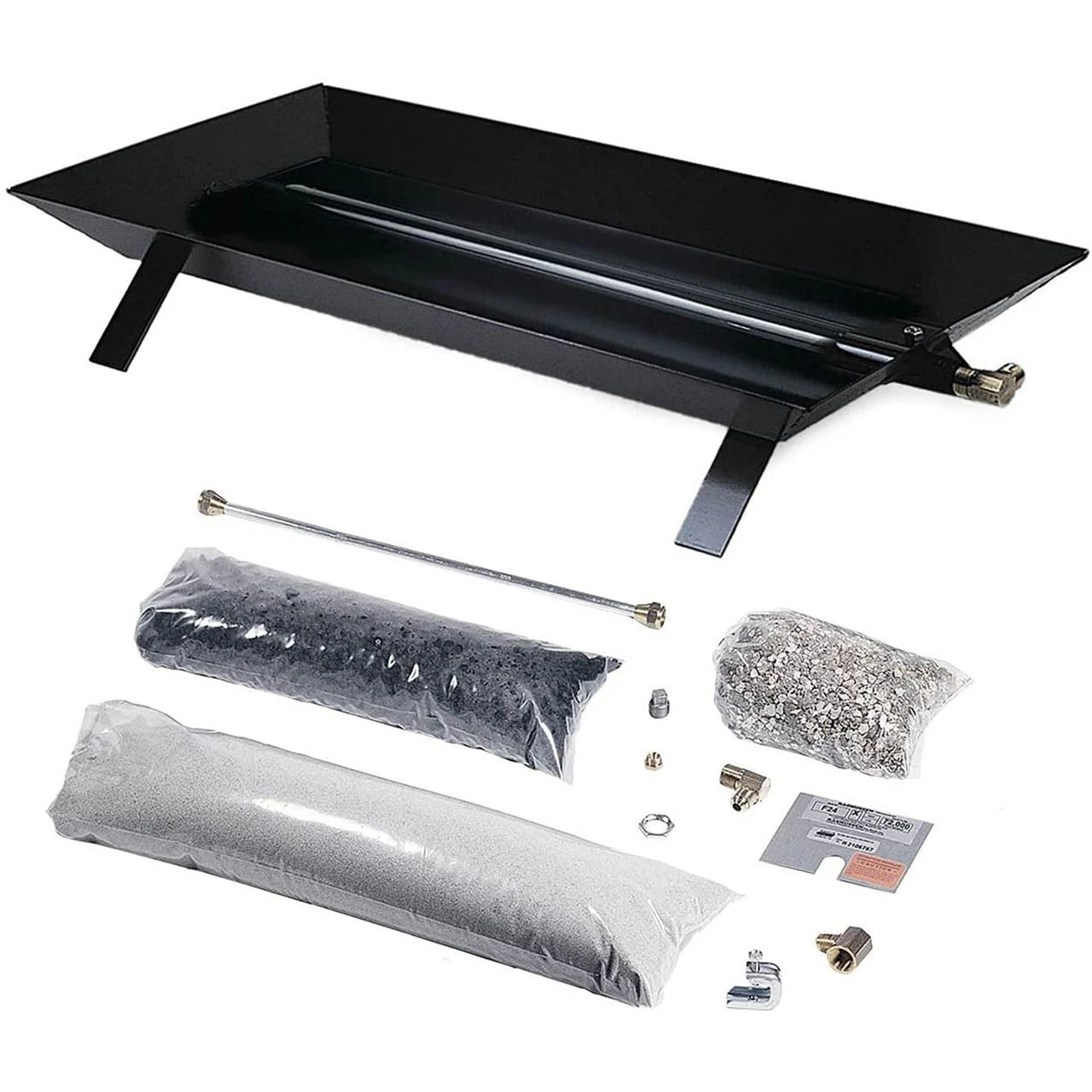

The Rectangular Pan Burner is a rectangular pan burner with removable Strap Legs, to allow the pan to sit directly on the fireplace floor or elevated off the floor. This burner has a ½” pipe burner and is made from heavy 16 gauge steel. An internal baffling over the burner allows gas and flame to spread across the pan, creating a nice even flame. Our Ceramic Balls, Stones & Shapes is the perfect finishing touch to your fireplace décor. This Custom Pan Burner With Strap Legs And Remote Ready Safety Pilot Control comes with:

• Removable Strap Legs
• Pan Filler

• Ember Magic
• Connector kit
• Damper clamp
• Remote Ready Safety Pilot “EASY” Control
• Instructions

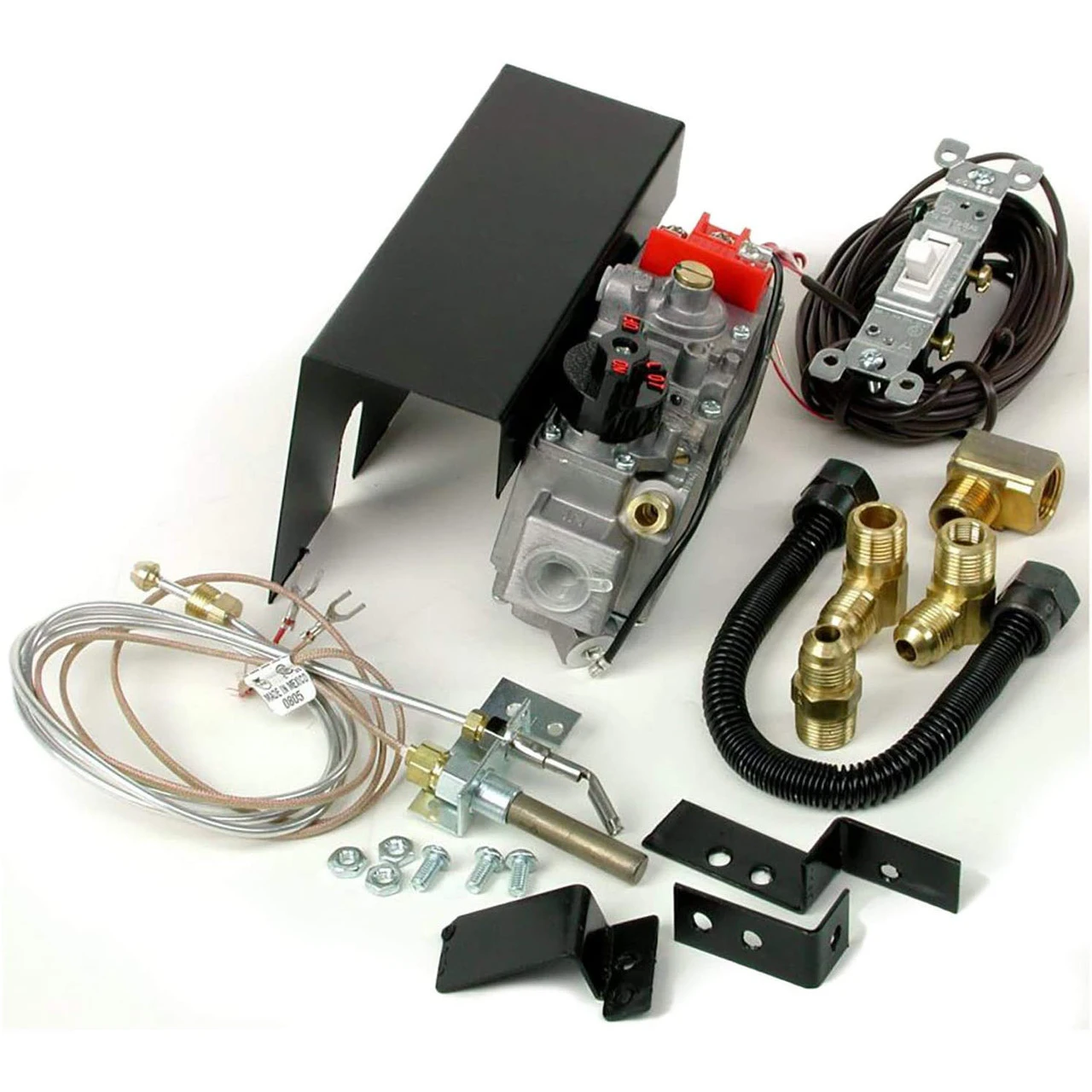

RPK3E Remote Ready Safety Pilot “EASY” Control. Requires one of the Wireless Remoter Transmitter Devices to light the main burner. Adjust the flame height manually by turning the knob at the valve. Provides safety shutdown in the event of an interruption in the gas supply or flameout. Also provides a convenient means of lighting the main burner. A safety control is required for all Propane installations, is advisable for natural gas, and is required in certain jusisdictions.



Specification:

• Material: 16 gauge steel
• Dimension: 24″w x 12″d
• Set Size: 24″

• Type: Vented
• Fuel Type: Natural Gas, Propane
• FP Type: Side Face Or Double Face

• Style: Logs Or Alterna (FireBalls, FireShapes, FireStones, FireDrops, FireGlitter)

• Ctns.: 1
• Weight: 35
• Certification: RIW
• BTU: 90K



Latching solenoid system that controls the ON/OFF of the burner(s) with the receiver switch or one of five Wireless Remote Transmitter Devices which are sold seperately.





---
